Szczegóły Produktu:
|
| Numer części: | STW13NM60N | Producent: | STMicroelectronics |
|---|---|---|---|
| Opis: | MOSFET N-CH 600V 11A TO-247 | Kategoria: | Tranzystory - FET, MOSFET - Pojedyncze |
| Rodzina: | Tranzystory - FET, MOSFET - Pojedyncze | Seria: | MDmesh™ II |
| Part Status | Obsolete |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drive Voltage (Max Rds On,Min Rds On) | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 790pF @ 50V |
| Vgs (Max) | - |
| FET Feature | - |
| Power Dissipation (Max) | 90W (Tc) |
| Rds On (Max) @ Id, Vgs | 360 mOhm @ 5.5A, 10V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

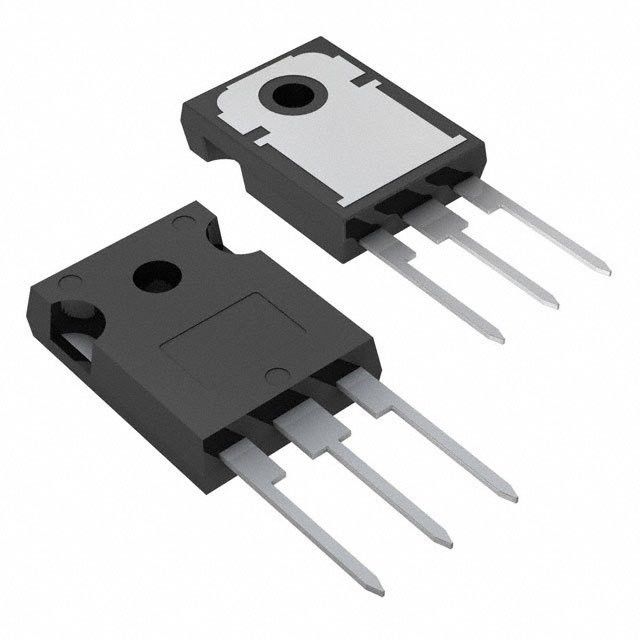

| Supplier Device Package | TO-247-3 |
| Package / Case | TO-247-3 |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
