Ürün ayrıntıları:
|

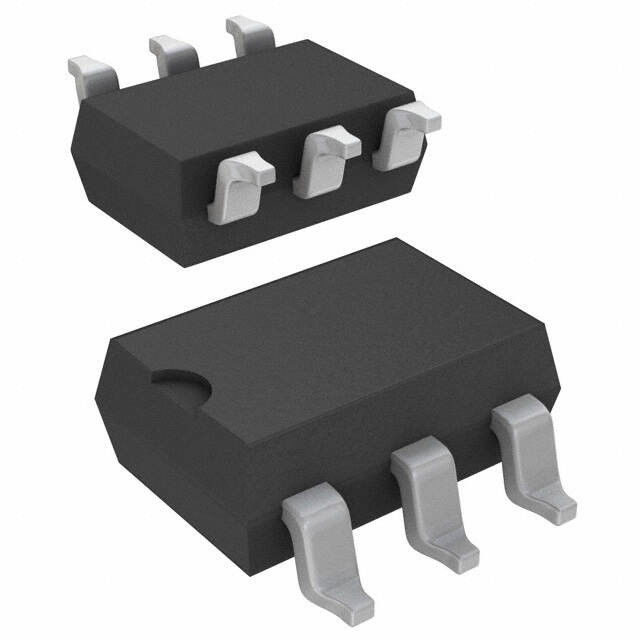

| Parça Numarası: | IL420-X007 | Üretici firma: | Vishay Yarı İletken Opto Bölümü |
|---|---|---|---|
| Tanım: | OPTOİZOLATÖR 5.3KV TRİAK | kategori: | Optoizolatörler - Triyak, SCR Çıkışı |
| Aile: | Optoizolatörler - Triyak, SCR Çıkışı |
| Part Status | Active |
|---|---|
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 600V |
| Static dV/dt (Min) | 10kV/µs |
| Current - LED Trigger (Ift) (Max) | 2mA |
| Current - On State (It (RMS)) (Max) | 300mA |
| Current - Hold (Ih) | 500µA |
| Turn On Time | 35µs |
| Voltage - Forward (Vf) (Typ) | 1.16V |
| Current - DC Forward (If) (Max) | 60mA |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD |
| Supplier Device Package | - |
| Approvals | CQC, CSA, cUR, UR |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
