Ürün ayrıntıları:
|

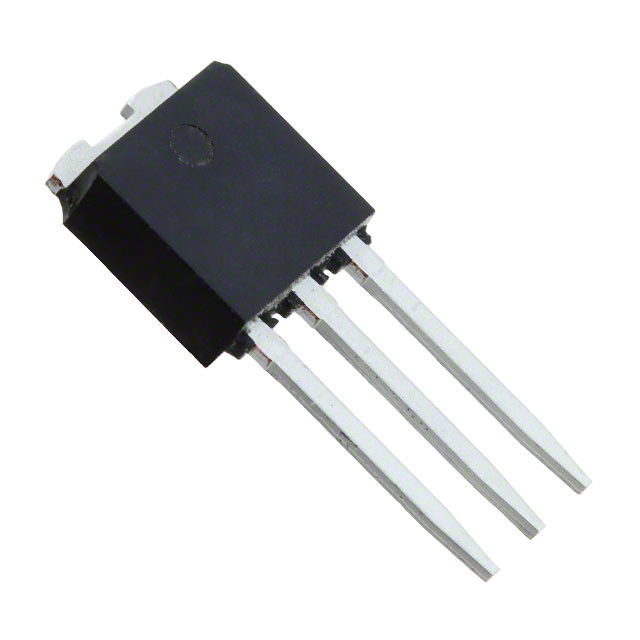

| Parça Numarası: | STU8N80K5 | Üretici firma: | STMikroelektronik |
|---|---|---|---|
| Tanım: | MOSFET N CH 800V 6A IPAK | kategori: | Transistörler - FET'ler, MOSFET'ler - Tekli |
| Aile: | Transistörler - FET'ler, MOSFET'ler - Tekli | Seri: | SuperMESH5™ |
| Part Status | Active |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Drive Voltage (Max Rds On,Min Rds On) | 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 16.5nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 450pF @ 100V |
| Vgs (Max) | ±30V |
| FET Feature | - |
| Power Dissipation (Max) | 110W (Tc) |
| Rds On (Max) @ Id, Vgs | 950 mOhm @ 3A, 10V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-251 |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
