Detalhes do produto:
|

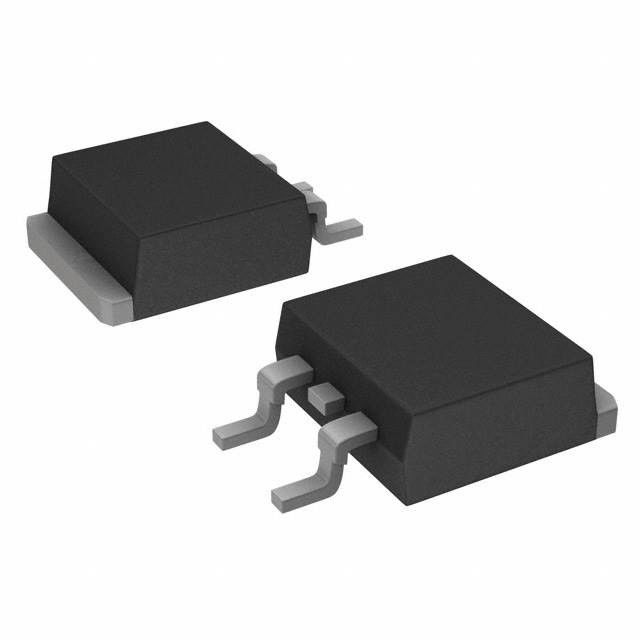

| Número da peça: | IRF9640STRRPBF | Fabricante: | Vishay Siliconix |
|---|---|---|---|
| Descrição: | MOSFET P-CH 200V 11A D2PAK | Categoria: | Transistor - FETs, MOSFETs - únicos |
| Família: | Transistor - FETs, MOSFETs - únicos |
| Part Status | Active |
|---|---|
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drive Voltage (Max Rds On,Min Rds On) | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 44nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1200pF @ 25V |
| Vgs (Max) | ±20V |
| FET Feature | - |
| Power Dissipation (Max) | 125W (Tc) |
| Rds On (Max) @ Id, Vgs | 500 mOhm @ 6.6A, 10V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
