جزئیات محصول:
|

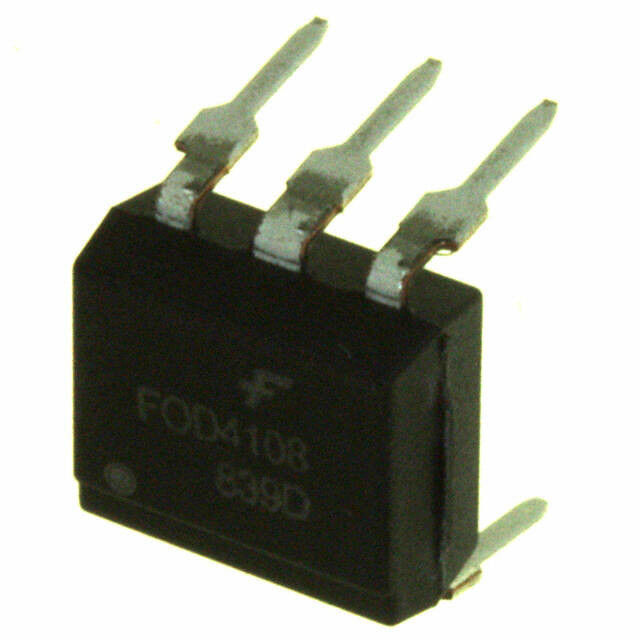

| شماره قطعه: | FOD4108 | سازنده: | نیمه هادی Fairchild/ON |
|---|---|---|---|
| شرح: | اپتوایزولاتور 5KV TRIAC 6DIP | دسته بندی: | Optoisolators - خروجی Triac، SCR |
| خانواده: | Optoisolators - خروجی Triac، SCR |
| Part Status | Active |
|---|---|
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 800V |
| Static dV/dt (Min) | 10kV/µs |
| Current - LED Trigger (Ift) (Max) | 2mA |
| Current - On State (It (RMS)) (Max) | 300mA |
| Current - Hold (Ih) | 500µA |
| Turn On Time | 60µs |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 30mA |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approvals | CSA, UL |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
