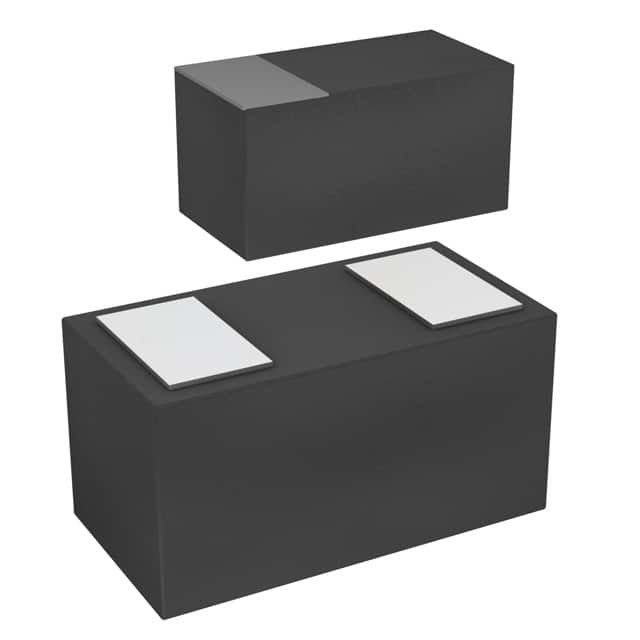

جزئیات محصول:
|
| شماره قطعه: | PESD5V0R1BSFYL | سازنده: | Nexperia USA Inc. |
|---|---|---|---|
| شرح: | تلویزیون دیود 5VWM 9.2VC DSN0603-2 | دسته بندی: | TVS - دیودها |
| سلسله: | TrEOS |
| Series | TrEOS |
|---|---|
| RoHS | RoHS |
| Type | Zener |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Power - Peak Pulse | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 0.1pF @ 1MHz |
| Supplier Device Package | DSN0603-2 |
| Unidirectional Channels | - |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 9.2V (Typ) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Current - Peak Pulse (10/1000µs) | 4.5A (8/20µA) |
