جزئیات محصول:
|

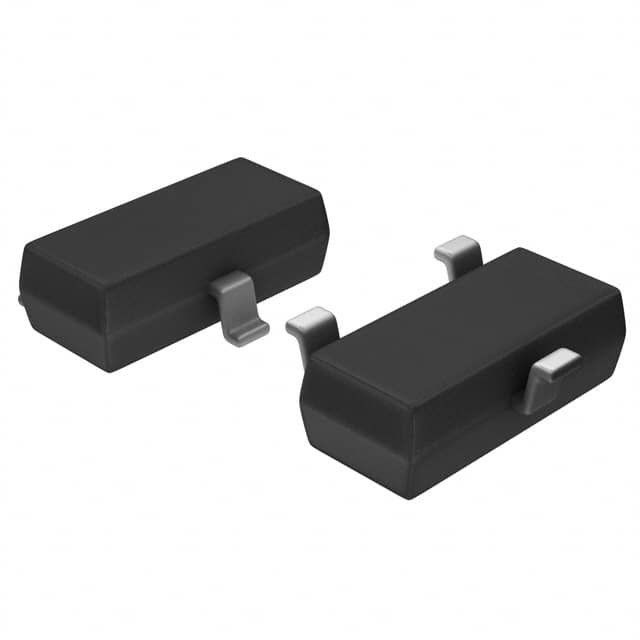

| شماره قطعه: | DRTR5V0U1SO-7 | سازنده: | دیودهای گنجانده شده |
|---|---|---|---|
| شرح: | TVS DIODE 5.5VWM SOT23 | دسته بندی: | TVS - دیودها |
| سلسله: | خودرو، AEC-Q101 |
| Series | Automotive, AEC-Q101 |
|---|---|
| RoHS | RoHS |
| Type | Steering (Rail to Rail) |
| Part Status | Active |
| Applications | Automotive, HDMI |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Power - Peak Pulse | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Power Line Protection | Yes |
| Bidirectional Channels | - |
| Capacitance @ Frequency | 1pF @ 1MHz |
| Supplier Device Package | SOT-23-3 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | - |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Current - Peak Pulse (10/1000µs) | - |
