جزئیات محصول:
|
| شماره قطعه: | IXYH60N90C3 | سازنده: | IXYS |
|---|---|---|---|
| شرح: | IGBT 900V 140A 750W C3 TO-247 | دسته بندی: | ترانزیستور - IGBT - تک |
| خانواده: | ترانزیستور - IGBT - تک | سلسله: | GenX3™، XPT™ |
| Part Status | Active |
|---|---|
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 900V |
| Current - Collector (Ic) (Max) | 140A |
| Current - Collector Pulsed (Icm) | 310A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 60A |
| Power - Max | 750W |
| Switching Energy | 2.7mJ (on), 1.55mJ (off) |
| Input Type | Standard |
| Gate Charge | 107nC |
| Td (on/off) @ 25°C | 30ns/87ns |
| Test Condition | 450V, 60A, 3 Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |

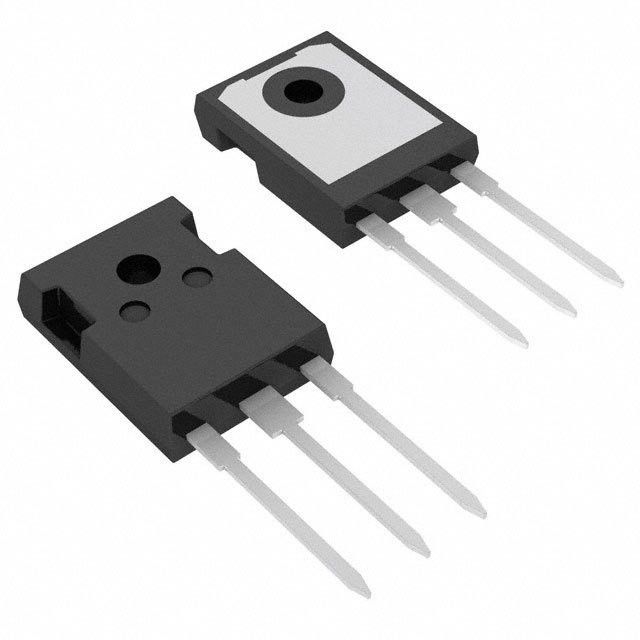

| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AD |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
