商品の詳細:
|
| 部品番号: | FDMB3800N | 製造業者: | Fairchild/ONの半導体 |
|---|---|---|---|
| 記述: | MOSFET 2N-CH 30V 4.8A MICROFET | 部門: | トランジスター- FETs、MOSFETs -配列 |
| 家族: | トランジスター- FETs、MOSFETs -配列 | シリーズ: | PowerTrench® |
| Part Status | Active |
|---|---|
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 4.8A |
| Rds On (Max) @ Id, Vgs | 40 mOhm @ 4.8A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.6nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 465pF @ 15V |
| Power - Max | 750mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

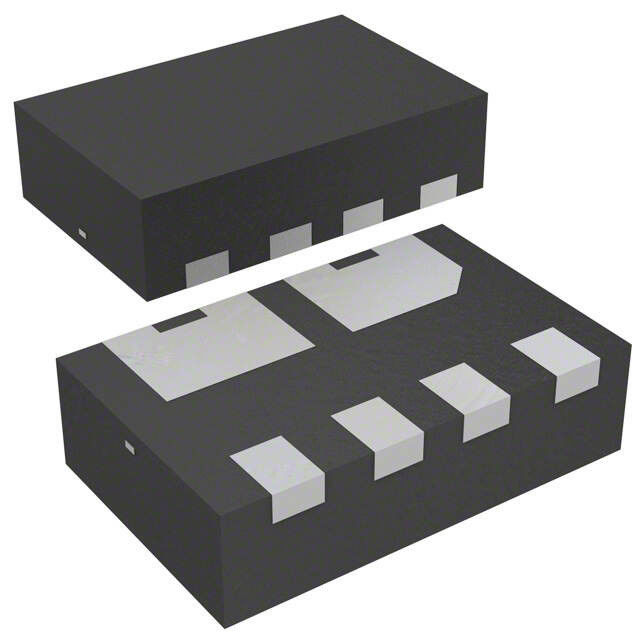

| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-MLP, MicroFET (3x1.9) |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
