商品の詳細:
|
| 部品番号: | STFI20NK50Z | 製造業者: | STMicroelectronics |
|---|---|---|---|
| 記述: | MOSFET N-CH 500V 17A I2PAK FP | 部門: | 単一トランジスター- FETs、MOSFETs - |
| 家族: | 単一トランジスター- FETs、MOSFETs - | シリーズ: | SuperMESH™ |
| Part Status | Active |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Tc) |
| Drive Voltage (Max Rds On,Min Rds On) | 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 119nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 2600pF @ 25V |
| Vgs (Max) | ±30V |
| FET Feature | - |
| Power Dissipation (Max) | 40W (Tc) |
| Rds On (Max) @ Id, Vgs | 270 mOhm @ 8.5A, 10V |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |

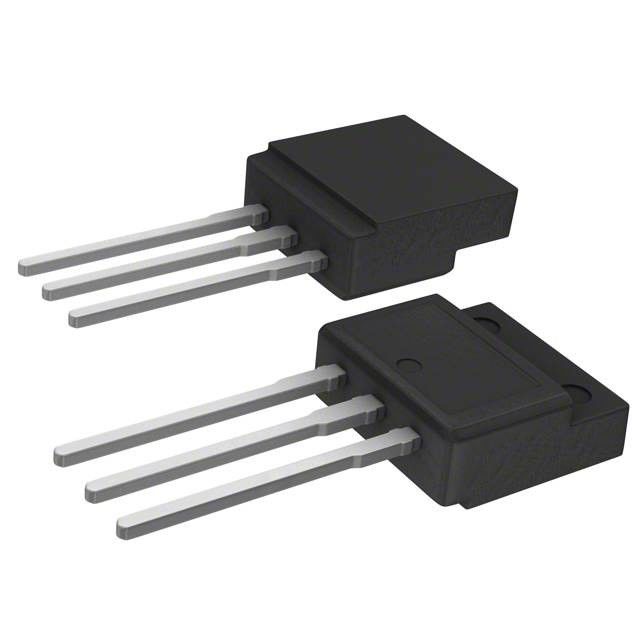

| Supplier Device Package | I2PAKFP (TO-281) |
| Package / Case | TO-262-3 Full Pack, I²Pak |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
