Dettagli:
|

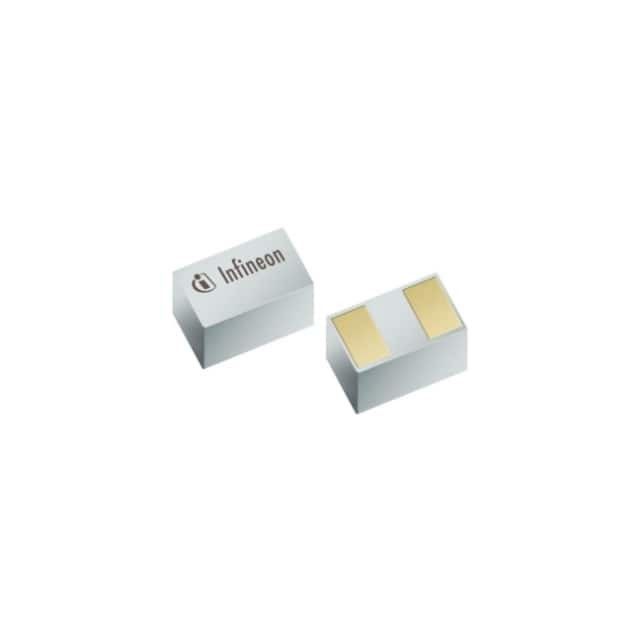

| Numero del pezzo: | ESD144B1W0201E6327XTSA1 | Produttore: | Infineon Technologies |
|---|---|---|---|
| Descrizione: | DIODO 18VWM 20VC WILL-2-2 DELLE TV | Categoria: | TV - Diodi |
| Series | |
|---|---|
| RoHS | RoHS |
| Type | Zener |
| Part Status | Active |
| Applications | HDMI, USB |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Power - Peak Pulse | 21W |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Power Line Protection | Yes |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 0.2pF @ 1MHz |
| Supplier Device Package | WLL-2-2 |
| Unidirectional Channels | - |
| Voltage - Breakdown (Min) | 18.5V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Voltage - Reverse Standoff (Typ) | 18V |
| Current - Peak Pulse (10/1000µs) | 3.5A (8/20µs) |
