Detail produk:
|
| Nomor Bagian: | RQ3E130BNTB | Pabrikan: | Semikonduktor Rohm |
|---|---|---|---|
| Keterangan: | MOSFET NCH 30V 13A HSMT8 | kategori: | Transistor - FET, MOSFET - Tunggal |
| Keluarga: | Transistor - FET, MOSFET - Tunggal |
| Part Status | Active |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta) |
| Drive Voltage (Max Rds On,Min Rds On) | 4.5V, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 36nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1900pF @ 15V |
| Vgs (Max) | ±20V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta) |
| Rds On (Max) @ Id, Vgs | 6 mOhm @ 13A, 10V |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |

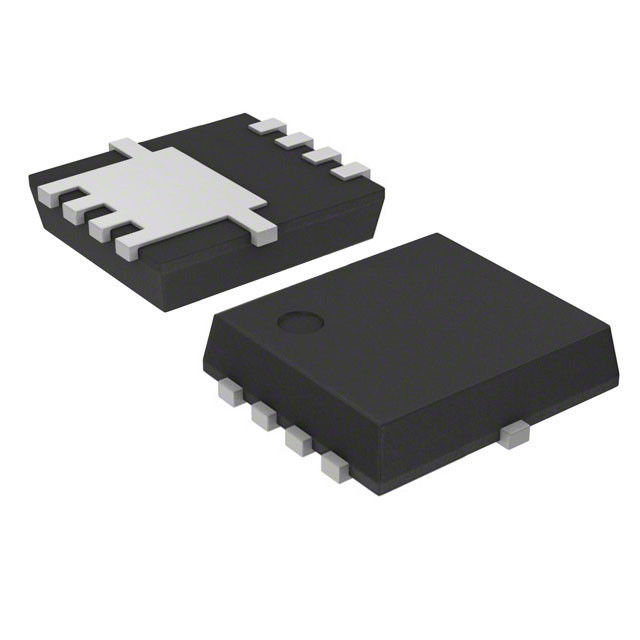

| Supplier Device Package | 8-HSMT (3.2x3) |
| Package / Case | 8-PowerVDFN |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
