Productdetails:
|
| Artikelnummer: | STGWA19NC60HD | Fabrikant: | STMicroelectronics |
|---|---|---|---|
| Beschrijving: | IGBT 600V 52A 208W TO247 | Categorie: | De transistors - IGBTs - kiezen uit |
| Familie: | De transistors - IGBTs - kiezen uit | Reeks: | PowerMESH™ |
| Part Status | Active |
|---|---|
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 52A |
| Current - Collector Pulsed (Icm) | 60A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 12A |
| Power - Max | 208W |
| Switching Energy | 85µJ (on), 189µJ (off) |
| Input Type | Standard |
| Gate Charge | 53nC |
| Td (on/off) @ 25°C | 25ns/97ns |
| Test Condition | 390V, 12A, 10 Ohm, 15V |
| Reverse Recovery Time (trr) | 31ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

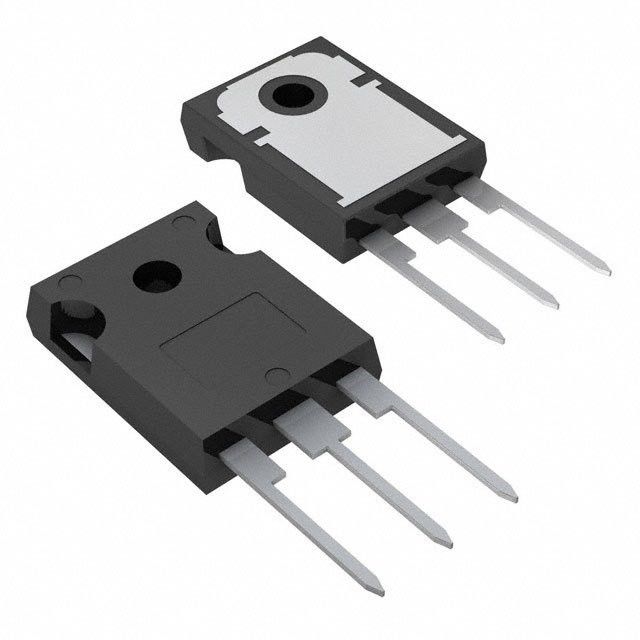

| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
