Productdetails:
|
| Artikelnummer: | STDLED625H | Fabrikant: | STMicroelectronics |
|---|---|---|---|

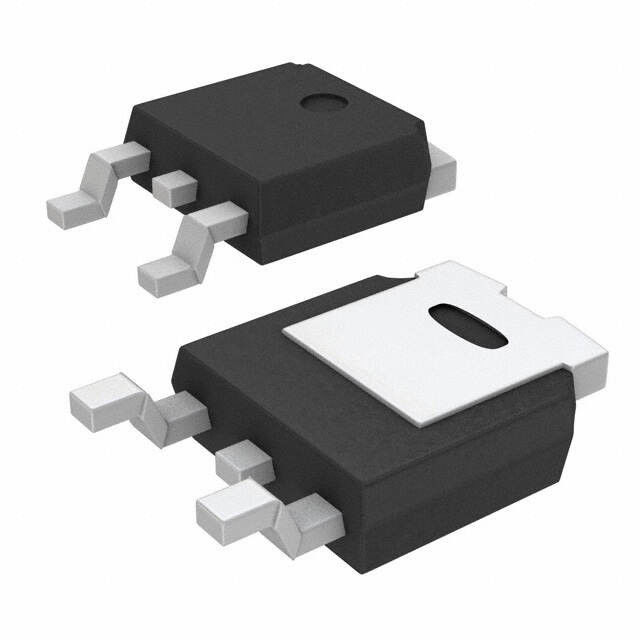

| Beschrijving: | MOSFET n-CH 620V 4.5A DPAK | Categorie: | De transistors - FETs, MOSFETs - kiezen uit |
| Familie: | De transistors - FETs, MOSFETs - kiezen uit |
| Part Status | Obsolete |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 620V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Tc) |
| Drive Voltage (Max Rds On,Min Rds On) | - |
| Vgs(th) (Max) @ Id | 4.5V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 560pF @ 50V |
| Vgs (Max) | - |
| FET Feature | - |
| Power Dissipation (Max) | 70W (Tc) |
| Rds On (Max) @ Id, Vgs | 2 Ohm @ 1.9A, 10V |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
